A BCD To Floating-Point Binary Routine

A BCD to Floating-Point Binary Routine

Marvin L. De Jong
Department of Mathematics-Physics
The School of the Ozarks
Pt. Lookout, MO 65726

Introduction

The principal purpose of this article is to provide the reader with a program that converts a BCD number (ASCII representation) with a decimal point and/or an exponent to a floating-point binary number. The floating-point binary number has a mantissa of 32 bits, an exponent byte consisting of a sign bit and seven magnitude bits, and a sign flag (one byte) for the mantissa. Positive and negative numbers whose magnitudes vary from 1.70141183*10³⁸ to 1.46936795*10^-39 and zero can be handled by this routine. In subsequent articles I hope to provide an output routine and a four-function arithmetic routine. The routine described here could be used in conjunction with the Am9511 Arithmetic Processing Unit¹ to perform a large variety of arithmetic functions.

Floating-Point Notation

Integer arithmetic is relatively simple to do with the 6502. Consult the Bibliography for a number of sources of information on multiple-byte, signed number addition, subtraction, multiplication and division. Scanlon's book, in particular, has some valuable assembly language routines of this sort. However, additional problems arise when the decimal number has a fractional part, such as the "14159" in the number 3.14159. Also, integer arithmetic is not suitable for handling large numbers like 2.3*10¹⁵. The solution is to convert decimal numbers to floating-point binary numbers. A binary floating-point number consists of a mantissa with an implied binary point just to the left of the most-significant non-zero bit and an exponent (or characteristic) that contains the information about where the binary point must be moved to represent the number correctly. Readers who are familiar with scientific notation will understand this quickly. Scanlon's book has a good section on floating-point notation. We will merely illustrate what a decimal number becomes in floating point binary by referring you to Table 1. The dashed line over a sequence of digits means that they repeat. For examples, 1/3 = .33 and 1/11 = .09090 = .090 while a binary example is 1/1010 = .00011001100 = .0001100.

Table 1. Decimal number to floating-point binary conversions.
NUMBER	BINARY NUMBER	FLOATING POINT NOTATION	MANTISSA	EXPONENT
0	0	0 × 2⁰	0	0
1	1	.1 × 2¹	1	1
2	10	.1 × 2²	1	10
4	100	.1 × 2³	1	11
1.5	1.1	.11 × 2¹	11	1
0.75	.11	.11 × 2⁰	11	0
0.1	0.00011001100	.1100 × 2^-3	1100	-11
31	11111	.11111 × 2⁵	11111	101
32	100000	100000	1	110

A close examination of Table 1 yields some important conclusions. Unless a number is an integer power of two (2ⁿ where n is an integer), the mantissa required to correctly represent the number will require more bits as the numbers increase. Thus, the number 1 can be correctly represented with a one-bit mantissa, but the number 31 requires a five-bit mantissa. A n-bit mantissa can correctly represent a number as large as 2ⁿ - 1, but no larger. There is another problem associated with numbers like 0.1_ten that become repeating numbers in binary. It should be clear that no mantissa with a finite number of bits can represent 0.1 exactly. The fact that computers use a finite number of bits to represent numbers like 0.1 can be illustrated by using BASIC to add 0.1 to a sum and print the answer repeatedly. Starting with a sum of zero, we obtained an answer of 3.6 after 36 times through the loop, but the next answer is 3.69999999 which is clearly incorrect. The error incurred by using a finite number of bits, to represent a number that requires more than that number of bits to correctly represent it, is called roundoff error.

How many bits should be used for the mantissa? Clearly it should be an integer number of bytes for ease in programming. Some computers have software packages that use a 24 bit mantissa. The largest number that can be represented by 24 bits is 2²⁴ -1 = 16777215. This represents about seven decimal digits, giving about six digit accuracy after several calculations. With my salary there is no trouble with six digit accuracy, but many financial calculations require accuracy to the nearest cent, and six digits are frequently not enough. If we choose 32 bits for our mantissa size we get a little more than nine digits (4.3 × 10⁹). This is the mantissa size used in several versions of Microsoft BASIC, and it is the size chosen here. The propagation of round-off errors through the calculations normally gives about eight digit accuracy. It is generally true that the roundoff errors accumulate as the number of calculations to find a specific result increases, but this is a subject beyond the scope of this article.

How big should the exponent be? If we choose to represent the binary exponent with one byte then we will have seven bits to represent the exponent (one sign bit and seven magnitude bits). The largest exponent is then +127. If all the bits in the mantissa are ones, then the largest number that can be represented is (1/2 + 1/4 + 1/8 + 1/16 + .... + 1/2³²)*2¹²⁷, which is approximately 1.70141183*10³⁸. The smallest exponent is -128. The smallest positive number that the mantissa can be is 1/2, thus the smallest positive number that can be represented is 2^-129 which is approximately 1.46936795*10^-39. Of course, if we chose to use two bytes for the exponent then much larger and smaller exponents could be accommodated, but for most calculations by earth people, a range of 10^-39 to 10³⁸ will do quite nicely. Remember that if you try to enter a number whose absolute value is outside of the range just given (except for zero) you will obtain erroneous results. No overflow or underflow messages are given when entering numbers with this routine.

One more note before turning to the program. The mantissa is said to be normalized when it is shifted so that the most-significant bit is one, and the binary point is assumed to be to the left of the most-significant bit. The only exception to this is the number zero which is represented by zeros in both the mantissa and the exponent. Although you are free to assume the binary point is some other place in the mantissa, it is conventional to keep it to the left of the mantissa, as illustrated in Table 1.

The Program To Float A Number

The program in Listing 1, written in the form of a subroutine, together with the other subroutines given in the listings, will accept numbers represented by ASCII from an input device and convert the numbers into their floating point representation. A typical entry might be + 12.3456789E + 24 or -.123456789E-30. The plus sign is optional since the computer simply disregards it. Up to 12 significant digits may be entered, although the least-significant three will soon be disregarded, leaving approximately 9 decimal digits (32 binary digits). At the completion of the routine, the floating-point representation will be found in locations $0001, $0002, $0003, $0004 (mantissa), $0005 (exponent) and location $0007 contains the sign of the mantissa. The sign byte is $FF if the number is negative, otherwise it is $00. Note that the accumulator (locations $0001-$0004) has not been complemented in the case of a minus number. Forming the twos complement may be done, when required, by the arithmetic routines. If a format compatible with the Am9511 Arithmetic Processing Unit is required, simply drop the least-significant byte of the mantissa ($0004), put the sign (set the bit for a minus, clear it for a plus) in bit seven of the exponent ($0005) and shift the sign of the exponent from bit seven to bit six, making sure to keep the rest of the exponent intact. Table 2 gives a summary of the important memory locations.

Table 2. Memory assignments for the BCD to floating-point binary routine.

$0000 = OVFLO; overflow byte for the accumulator when it is shifted left or multiplied by ten.

$0001 = MSB; most-significant byte of the accumulator.

$0002 = NMSB; next-most-significant byte of the accumulator.

$0003 = NLSB; next-least-significant byte of the accumulator.

$0004 = LSB; least-significant byte of the accumulator.

$0005 = BEXP; contains the binary exponent, bit seven is the sign bit.

$0006 = CHAR; used to store the character input from the keyboard.

$0007 = MFLAG; set to $FF when a minus sign is entered.

$0008 = DPFLAG; decimal point flag, set when decimal point is entered.

$000A = ESIGN; set to $FF when a minus sign is entered for the exponent.

$000B = TEMP; temporary storage location.

$000C = EVAL; value of the decimal exponent entered after the "E."

$0017 = DEXP; current value of the decimal exponent.

After clearing all of the memory locations that will be used by routine, the program in Listing 1 jumps to a subroutine at $0F9B. Most users will not want to call this subroutine, since it merely serves to clear the AIM 65 display. Subroutine INPUT, called next, must be supplied by the user. It must get a BCD digit represented in ASCII code from some input device, store it in CHAR at $0006, and return to the calling program with the ASCII character in the 6502's accumulator. The necessary subroutines for the AIM 65 are given in Listing 4. They are given in the "K" disassembly format with no comments since they have previously been described by De Jong². Our subroutines input the number on the keyboard and echo the number on the printer and the display.

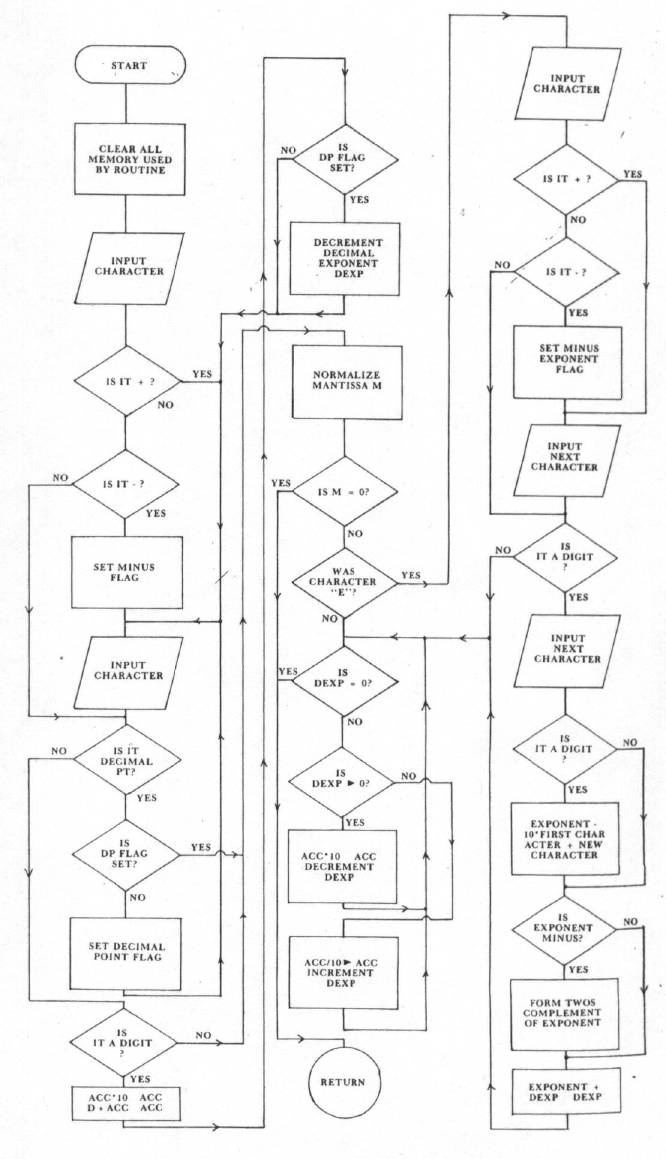

The algorithm for the conversion routine was obtained from an article by Hashizume³. If you are interested in more details regarding floating-point arithmetic routines, please consult his fine article. A flow chart of the routine in Listing 1 is given in Figure 1. The flow chart and the program comments should be sufficient explanation. Basically it works by converting the number, as it is being entered, to binary and multiplying by ten, in binary of course. Later, if and when the exponent is entered, the number is either multiplied or divided by ten, in binary, to get a normalized mantissa and an exponent representing a power of two rather than a power often. Each time a multiplication or division by ten occurs the mantissa is renormalized and rounded upward if the most-significant discarded bit is one. Each normalization adjusts the binary exponent. When the decimal exponent finally reaches zero no more multiplications or divisions are necessary since 10⁰ = 1. To maintain 32-bit precision, an extra byte, called OVFLO, is used in the accumulator for all *10 and /10 operations.

REFERENCES

1. De Jong, Marvin L., "Interfacing the Am9511 Arithmetic Processing Unit," COMPUTE II. (in press).

2. De Jong, Marvin L., "An AIM 65 Notepad," MICRO, No. 16, Sept. 1979, p. 11.

3. Hashizume, Burt, "Floating Point Arithmetic," BYTE, V 2, No. 11, Nov. 1977, p. 76.

BIBLIOGRAPHY

1. Programming and Interfacing the 6502, With Experiments, Marvin L. De Jong, Howard W. Sams & Co., Indianapolis, 1980.

2. 6502 Assembly Language Programming, Lance A. Leventhal, Osborne/McGraw-Hill, Berkeley, 1979.

3. 6502 Software Design, Leo J. Scanlon, Howard W. Sams & Co., Indianapolis, 1980.

Listing 1. ASCII to Floating-Point Binary Conversion Program
$0E00 D8	START	CLD	Decimal mode not required
0E01 A2 20		LDX $20	Clear all the memory locations used for storage by this routine by loading them with zeros.
0E03 A9 00		LDA $00
0E05 95 00	CLEAR	STA MEM,X
0E07 CA		DEX
0E08 10 FB		BPL CLEAR
0E0A 20 9B 0F		JSR CLDISP	Clears AIM 65 display.
0E0D 20 30 0F		JSR INPUT	Get ASCII representation of BCD digit. Is it a + sign? Yes, get another character. Is it a minus sign?
0E10 C9 2B		CMP $2B
0E12 F0 06		BEQ PLUS
0E14 C9 2D		CMP $2D
0E16 D0 05		BNE NTMNS
0E18 C6 07		DEC MFLAG	Yes, set minus flag to $FF.
0E1A 20 30 0F	PLUS	JSR INPUT	Get the next character.
0E1D C9 2E	NTMNS	CMP $2E	Is character a decimal point?
0E1F D0 08		BNE DIGIT	No. Perhaps it is a digit. Yes, check flag.
0E21 A5 08		LDA DPFLAG	Was the decimal point flag set?
0E23 D0 2C		BNE NORMIZ	Time to normalize the mantissa.
0E25 E6 08		INC DPFLAG	Set decimal point flag, and get the next character.
0E27 D0 F1		BNE PLUS
0E29 C9 30	DIGIT	CMP $30	Is the character a digit?
0E2B 90 24		BCC NORMIZ	No, then normalize the mantissa.
0E2D C9 3A		CMP $3A	Digits have ASCII representations between $30 and $39.
0E2F B0 20		BCS NORMIZ
0E31 20 00 0D		JSR TENX	It was a digit, so multiply the accumulator by ten and add the new digit. First strip the ASCII prefix by subtracting $30.
0E34 A5 06		LDA CHAR
0E36 38		SEC
0E37 E9 30		SBC $30
0E39 18		CLC	Add the new digit to the least- significant byte of the accumulator.
0E3A 65 04		ADC LSB
0E3C 85 04		STA LSB	Next, any "carry" will be added to the other bytes of the accumulator.
0E3E A2 03		LDX $03
$0E40 A9 00	ADDIG	LDA $00
0E42 75 00		ADC ACC,X	Add carry here.
0E44 95 00		STA ACC,X	And save result.
0E46 CA		DEX
0E47 10 F7		BPL ADDIG	The new digit has been added.
0E49 A5 08		LDA DPFLAG	Check the decimal point flag.
0E4B F0 CD		BEQ PLUS	If not set, get another character.
0E4D C6 17		DEC DEXP	If set, decrement the exponent, then get another character.
0E4F 30 C9		BMI PLUS
0E51 20 30 0D NORMIZJSR NORM			Normalize the mantissa.
0E54 84 0B		STY TEMP	Save Y. It contained the number of "left shifts" in NORM.
0E56 A9 20		LDA $20
0E58 38		SEC	The binary exponent is 32 - number of left shifts that NORM took to make the most-significant bit one.
0E59 E5 0B		SBC TEMP
0E5B 85 05		STA BEXP
0E5D A5 01		LDA MSB	If the MSB of the accumulator is zero, then the number is zero, and its all over. Otherwise, check if the last character was an "E".
0E5F F0 5A		BEQ FINISH
0E61 A5 06		LDA CHAR
0E63 C9 45		CMP $45
0E65 D0 52		BNE TENPRW	If not, move to TENPRW.
0E67 20 30 0F		JSR INPUT	If so, get another character.
0E6A C9 2B		CMP $2B	Is it a plus?
0E6C F0 06		BEQ PAST	Yes, then get another character.
0E6E C9 2D		CMP $2D	Perhaps it was a minus?
0E70 D0 05		BNE NUMP	No, then maybe it was a number.
0E72 C6 0A		DEC ESIGN	Set exponent sign flag.
0E74 20 30 0F	PAST	JSR INPUT	Get another character.
0E77 C9 30	NUMB	CMP $30	Is it a digit?
0E79 90 3E		BCC TENPRW	No, more to TENPRW.
0E7B C9 3A		CMP $3A
0E7D B0 3A		BCS TENPRW
0E7F 38		SEC	It was a digit, so strip ASCII prefix.
$0E80 E9 30		SBC $30	ASCII prefix is $30.
0E82 85 0B		STA TEMP	Keep the first digit here.
0E84 20 30 0F		JSR INPUT	Get another character.
0E87 C9 30		CMP $30	Is it a digit?
0E89 90 13		BCC HERE	No. Then finish handling the exponent.
0E8B C9 3A		CMP $3A
0E8D B0 0F		BCS HERE
0E8F 38		SEC	Yes. Decimal exponent is new digit plus 10 times the old digit.
0E90 E9 30		SBC $30
0E92 85 0C		STA EVAL	Strip ASCII prefix from new digit.
0E94 A5 0B		LDA TEMP	Get the old character and multiply it by ten. First times two.
0E96 0A		ASL A
0E97 0A		ASL A	Times two again makes times four.
0E98 18		CLC
0E99 65 0B		ADC TEMP	Added to itself makes times five.
0E9B 0A		ASL A	Times two again makes time ten.
0E9C 85 0B		STA TEMP	Store it.
0E9E 18	HERE	CLC	Add the new digit, to the exponent.
0E9F A5 0B		LDA TEMP
0EA1 65 0C		ADC EVAL
0EA3 85 0C		STA EVAL	Here is the exponent, except for its sign. Was it a negative?
0EA5 A5 0A		LDA ESIGN
0EA7 F0 09		BEQ POSTV	No.
0EA9 A5 0C		LDA EVAL	Yes, then form its twos complement by complementation followed by adding one.
0EAB 49 FF		EOR $FF
0EAD 38		SEC
0EAE 69 00		ADC $00
0EB0 85 0C		STA EVAL	Result into exponent value location.
0EB2 18	POSTV	CLC	Prepare to add exponents.
0EB3 A5 0C		LDA EVAL	Get "E" exponent.
0EB5 65 17		ADC DEXP	Add exponent from input and norm.
0EB7 85 17		STA DEXP	All exponent work finished.
$0EB9 A5 17	TENPRW	LDA DEXP	Get decimal exponent.
0EBB F0 71		BEQ FINISH	If it is zero, routine is done
0EBD 10 61		BPL MLTPLY	Ir it is plus, go multiply by ten.
0EBF A2 03	ONCMOR	LDX $03	It's minus. Divide by ten.
0EC1 06 04	BACK	ASL LSB	First shift the accumulator
0EC3 26 03		ROL NLSB	three bits left.
0EC5 26 02		ROL NMSB
0EC7 26 01		ROL MSB
0EC9 26 00		ROL OVFLO
0ECB C6 05		DEC BEXP	Decrease the binary exponent for each left shift.
0ECD CA		DEX
0ECE D0 F1		BNE BACK
0ED0 A0 20		LDY $20	Number of trial divisions of $0A into the accumulator giving a $20 = 32 bit quotient.
0ED2 06 04	AGAIN	ASL LSB
0ED4 26 03		ROL NLSB
0ED6 26 02		ROL NMSB
0ED8 26 01		ROL MSB
0EDA 26 00		ROL OVFLO
0EDC 88		DEY
0EDD F0 0E		BEQ OUT	Get out when number of trial divisions reaches $20 = 32.
0EDF A5 00		LDA OVFLO
0EE1 38		SEC	Subtract 10 = $0A from partial divident in OVFLO.
0EE2 E9 0A		SBC $0A
0EE4 30 EC		BMI AGAIN	If result is minus, zero into quotient
0EE6 85 00		STA OVFLO	Otherwise store result in OVFLO, and set bit to one in quotient.
0EE8 E6 04		INC LSB
0EEA 18		CLC
0EEB 90 E5		BCC AGAIN	Try it again.
0EED A5 00	OUT	LDA OVFLO	Check once more to see if quotient should be rounded upwards.
0EEF C9 0A		CMP $0A
0EF1 90 15		BCC AHEAD	No.
0EF3 A2 04		LDX $04	Yes. Add one to quotient.
$0EF5 B5 00	REPET	LDA ACC, X	Get each byte of the accumulator and add the carry from the previous addition.
0EF7 69 00		ADC $00
0EF9 95 00		STA ACC, X
0EFB CA		DEX
0EFC D0 F7		BNE REPET
0EFE 90 08		BCC AHEAD	What if carry from accumulator occurred? Get mostsignificant byte and put a 1 in bit seven.
0F00 A5 01		LDA MSB
0F02 09 80		ORA $80
0F04 85 01		STA MSB	Result into high byte, and increment the binary exponent.
0F06 E6 05		INC BEXP
0F08 A5 01	AHEAD	LDA MSB	Because of three-bit shift at start of division, a one-bit shift (at most) may be required to normalize the mantissa now.
0F0A 30 0A		BMI ARND
0F0C 06 04		ASL LSB
0F0E 26 03		ROL NLSB
0F10 26 02		ROL NMSB
0F12 26 01		ROL MSB
0F14 C6 05		DEC BEXP	If so, also decrement binary exponent.
0F16 A9 00	ARND	LDA $00	Clear overflow byte.
0F18 85 00		STA OVFLO
0F1A E6 17		INC DEXP	For each divide-by-10, increment the decimal exponent until it is zero. Then its all over.
0F1C D0 A1		BNE ONCMOR
0F1E F0 0E		BEQ FINISH
0F20 A9 00	MLTPLY	LDA $00	Clear overflow byte.
0F22 85 00		STA OVFLO
0F24 20 00 0D	STLPLS	JSR TENX	Jump to multiply-by-ten subroutine.
0F27 20 30 0D		JSR NORM	Then normalize the mantissa.
0F2A C6 17		DEC DEXP	For each multiply-by-10, decrement the decimal exponent until it's zero. All finished now.
0F2C D0 F6		BNE STLPLS
0F2E 60	FINISH	RTS

Listing 2. Multiply by Ten Subroutine.
$0D00 18	TENX	CLC	Shift accumulator left.
0D01 A2 04		LDX $04	Accumulator contains four bytes so X is set to four.
0D03 B5 00	BR1	LDA ACC, X
0D05 2A		ROL A	Shift a byte left.
0D06 95 10		STA ACCB, X	Store it in accumulator B.
0D08 CA		DEX
0D09 10 F8		BPL BR1	Back to get another byte.
0D0B A2 04		LDX $04	Now shift accumulator B left once again to get "times four."
0D0D 18		CLC
0D0E 36 10	BR2	ROL ACCB, X	Shift one byte left.
0D10 CA		DEX
0D11 10 FB		BPL BR2	Back to get another byte.
0D13 A2 04		LDX $04	*Add accumulator to accumulator B to get A + 4 A = 5* A.**
0D15 18		CLC
0D16 B5 00	BR3	LDA ACC, X
0D18 75 10		ADC ACCB, X
0D1A 95 00		STA ACC, X	Result into accumulator.
0D1C CA		DEX
0D1D 10 F7		BPL BR3
0D1F A2 04		LDX $04	*Finally, shift accumulator left one bit to get 25* A = 10* A.**
0D21 18		CLC
0D22 36 00	BR4	ROL ACC, X
0D24 CA		DEX
0D25 10 FB		BPL BR4	Get another byte.
0D27 60		RTS

Listing 2. Multiply by Ten Subroutine.
$0D00 18	TENX	CLC	Shift accumulator left.
0D01 A2 04		LDX $04	Accumulator contains four bytes so X is set to four.
0D03 B5 00	BR1	LDA ACC, X
0D05 2A		ROL A	Shift a byte left.
0D06 95 10		STA ACCB, X	Store it in accumulator B.
0D08 CA		DEX
0D09 10 F8		BPL BR1	Back to get another byte.
0D0B A2 04		LDX $04	Now shift accumulator B left once again to get "times four."
0D0D 18		CLC
0D0E 36 10	BR2	ROL ACCB, X	Shift one byte left.
0D10 CA		DEX
0D11 10 FB		BPL BR2	Back to get another byte.
0D13 A2 04		LDX $04	*Add accumulator to accumulator B to get A + 4A = 5A.*
0D15 18		CLC
0D16 B5 00	BR3	LDA ACC, X
0D18 75 10		ADC ACCB, X
0D1A 95 00		STA ACC, X	Result into accumulator.
0D1C CA		DEX
0D1D 10 F7		BPL BR3
0D1F A2 04		LDX $04	*Finally, shift accumulator left one bit to get 25A = 10A.**
0D21 18		CLC
0D22 36 00	BR4	ROL ACC, X
0D24 CA		DEX
0D25 10 FB		BPL BR4	Get another byte.
0D27 60		RTS

Listing 3. Normalize the Mantissa Subroutine.
$0D 30 18	NORM	CLC
0D 31 A5 00	BR6	LDA OVFLO	Any bits set in the overflow byte? Yes, then rotate right.
0D33 F0 0F		BEQ BR5
0D35 46 00		LSR OVFLO	No, then rotate left.
0D37 66 01		ROR MSB
0D39 66 02		ROR NMSB
0D3B 66 03		ROR NLSB
0D3D 66 04		ROR LSB	For each shift right, increment binary exponent.
0D3F E6 05		INC BEXP
0D41 B8		CLV	Force a jump back.
0D42 50 Ed		BVC BR6
0D44 90 0D	BR5	BCC BR7	Did the last rotate cause a carry? Yes, then round the mantissa upward.
0D46 A2 04		LDX $04
0D48 B5 00	BR8	LDA ACC,X
0D4A 69 00		ADC $00	Carry is set so one is added
0D4C 95 00		STA ACC,X
0D4E CA		DEX
0D4F 10 F7		BPL BR8
0D51 30 DE		BMI BR6	Check overflow byte once more.
0D53 A0 00	BR7	LDY $00	Y will count number of left shifts.
0D55 A5 01	BR10	LDA MSB	Does most-significant byte have a one in bit seven? Yes, get out.
0D57 30 0D		BMI BR11
0D59 18		CLC	No. Then shift the accumulator left one bit.
0D5A A2 04		LDX	$04
0D5C 36 00	BR9	ROL ACC,X
0D5E CA		DEX
0D5F D0 FB		BNE BR9
0D61 C8		INY	Keep track of left shifts.
0D62 C0 20		CPY $20	Not more than $20 = 32 bits.
0D64 90 EF		BCC BR10
0D66 60	BR11	RTS	That's it.

Listing 4. AIM 65 Input/Output Subroutines.
$0F30 20 JSR E93C	$0F60 A2 LDX #13	$0F72 8D STA A44C
0F33 20 JSR F000	0F62 8A TXA	0F75 A2 LDX #01
0F36 85 STA 06	0F63 48 PHA	0F77 BD LDA A438,X
0F38 20 JSR 0F72	0F64 BD LDA A438,X	0F7A CA DEX
0F3B 20 JSR 0F60	0F67 09 0RA #80	0F7B 9D STA A438,X
0F3E A5 LDA 06	0F69 20 JSR EF78	0F7E E8 INX
0F40 60 RTS	0F6C 68 PLA	0F7F E8 INX
	0F6D AA TAX	0F80 E0 CPX #15
$0F85 A2 LDX #12	0F6E CA DEX	0F82 90 BCC 0F77
0F87 BD LDA A438,X	0F6F 10 BPL 0F62	0F84 60 RTS
0F8A E8 INX	0F71 60 RTS
0F8B 9D STA A438,X
0F8E CA DEX	$0F9B A2 LDX #13
0F8F CA DEX	0F9D A9 LDA #20
0F90 10 BPL 0F87	0F9F 9D STA A438, X
0F92 A9 LDA #20	0FA2 CA DEX
0F94 8D STA A438	0FA3 10 BPL 0F9F
0F97 20 JST 0F60	0FA5 60 RTS
0F9A 60 RTS

Figure 1. A Flow Chart for the BCD to Floating-Point Binary Routine.
