Bitmap Graphics On The 64

Michael Tinglof

High-resolution graphics are achieved by bitmapping. Here's a tutorial and an explanation of what happens in the 64's memory as you bitmap. Also included is a sample program which illustrates the techniques discussed.

High-resolution images of 320 by 200 point (called pixel) resolution are possible on the 64. To create these images, the 64's VIC-II video chip uses a technique called bitmapping. Simply defined, this means that every bit in a selected area of memory represents one pixel (the smallest point of light) on the high-resolution screen. Thus, by setting or clearing appropriate bits, a picture can be formed.

You might ask "Why use bitmapped graphics when sprites are available and far more convenient to use?" The answer is simple: Each graphics mode has its own purpose. Several of the main reasons for using bitmapped graphics are to create graphs of formulas or statistics, to create high-resolution color pictures, and to create a detailed background for use with sprites, such as for a game.

Binary Operations

Before the bitmapped mode can be used effectively, it is important to have a basic understanding of binary arithmetic (see the section "Binary And Bitmapping" accompanying this article) and the logical AND and OR commands. Basically, they are used to selectively set and clear one or more bits in a byte. AND and OR cause a bit-by-bit comparison of two bytes to produce a third byte. In the case of AND, if both bits are on (1), the resulting bit is on; and in the case of OR, if either bit, or both, is on, the resulting bit, likewise, is on. For example:

The bits in a byte are usually numbered as follows:

7 6 5 4 3 2 1 0

AND is used to selectively clear bits, and OR is used to set bits. For example:

Given: 10100101, clear bit 5. To do this, define a byte with bit 5 set (0010000), then take the inverse (properly termed "complement") of the byte by changing all l's to 0's and vice versa. Finally, AND the calculated byte with the given byte:

Given: 10100101, set bit 6. To do this, define a byte with bit 6 set. Then OR this byte with the given byte:

Remember that when BASIC is used, all binary bytes must be converted to decimal first. BASIC'S AND or OR instructions will then work as described above.

Setting Up The VIC-II Chip

With an understanding of ANDs and ORs, a high-resolution picture can be created. The first step is to select an area of memory 8,000 bytes in length for the bitmap.

The VIC-II chip accesses only one 16K block of memory at a time. Upon power-up, the VIC-II sees the first 16K from locations 0 to 16383. All video operations, including those for screen memory and sprite definitions, access the memory in this area. There is no room in this block for an 8K bitmap, however, without conflicting with BASIC. The best solution is to select a different 16K block. (Bits 1 and 0 of address 56576 control where the block is placed in memory.) The combinations of these two bits and the range of addresses they represent are as follows:

Note that each block starts at an even 16K boundary. To select a memory block for the VIC-II chip, use the following command:

POKE 56576, Y

where Y is one of the decimal values from the above table. The best block to choose when using a bitmap and BASIC is number 2:

POKE 56576, 2

Within this block, two more areas must be selected: one for the 8K bitmap and one for the 1K screen memory. Address 53272 is used to control these two memory regions. One bit in this byte controls which 8K section in the 16K block is used for the bitmap; four bits control which 1024-byte area is used as the screen memory; and three bits are not used. The bits are arranged in address 53272 as follows:

The areas selected must fall on even boundaries — that is, their starting address must be a multiple of their size. For example, if the 16K block selected is from 0 to 16383, the screen memory can fall on 0, 1024, 2048, 4096, and so on. The following table can be used to determine which block should be used for screen memory or the bitmap:

where Base is the first address in the selected 16K block. To set 53272, use the following formula:

POKE 53272, screen memory block * 16 + bitmap block * 8

If you are using the bitmap and BASIC at the same time, use the following POKE:

POKE 53272,120

This sets the screen memory block to seven, and the bitmap block to eight. For the 16K block suggested for use with BASIC, this means that screen memory starts at 23552 and the bitmap starts at 24576.

Once the memory pointers have been set, the VIC-II chip must be told to display the bitmap on the screen. Bit 5 of 53265 turns on the bitmap mode, that is, displays bitmap memory. To set this bit, use the following POKE command:

POKE 53265, PEEK(53265) OR 2↑5

Drawing The Picture

A high-resolution picture can now be created — all you have to do is set and/or clear the appropriate bits in bitmap memory. The problem is determining which bit controls which pixel. This requires an understanding of how the VIC-II chip draws the bitmap on the screen.

The bitmap memory is constructed similar to screen memory in text mode — it is broken into 1000 areas, each eight bytes in size, which we'll call cells.

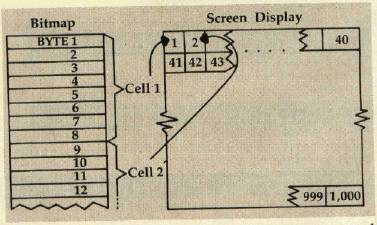

These cells are arranged contiguously in memory — cell 1 follows cell 0, cell 2 follows cell 1, and so on. They are arranged in the bitmap in an order similar to that of screen memory in the text mode, 40 cells per row, 25 rows. The whole process, as described so far, can be illustrated as follows:

Each cell controls an area of 64 pixels arranged in an 8 by 8 matrix. The first byte in the cell controls the top row of pixels in that matrix, the second byte controls the row beneath, and so on down.

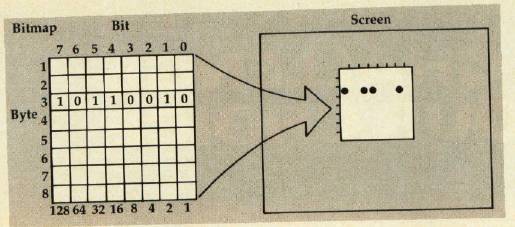

The eight bits in each byte control one pixel in that row — the highest valued bit controls the leftmost pixel and so on through the lowest valued bit, which controls the rightmost pixel. Graphically, the process works as follows:

Using X and Y coordinates is cumbersome with this system. If this type of plotting is needed, the following equations will determine which bit to set for the X, Y coordinate:

Y1 = INT(Y/8)*8 determines which row of cells
X1 = INT(X/8)*8 determines which cell on the above row
AD = Y1*320 + X1 + Y - Y1 + start of bitmap memory determines address of proper byte
BT = 7 — X1 determines which bit to set
POKE AD, PEEK (AD) OR 2 ↑ BT sets the bit

If you have been following our example setup commands, use a starting address for the bitmap of 24576.

Adding Color

Color is an important part of high-resolution graphics. Each of the 1000 bytes in screen memory controls the color displayed for one cell. Note that screen memory controls the color only in bitmap mode — in normal text mode, it contains the characters displayed on the screen. The bytes in screen memory are in the same order as the cells in the bitmap (the color of cell 650 is controlled by byte 650 in screen memory). In each byte, four bits are used to control the color of each bit in the corresponding cell of the bitmap, and four bits are used to control the color of bits equal to zero. These bits are arranged in each byte of screen memory as follows:

The colors and their corresponding values are listed on page 159 of the User's Guide. Once the values for the desired colors have been found, use the following formula:

(color of bits = 1)*16 + (color of bits = 0)

POKE this value into the appropriate byte of screen memory. Remember that attempting to change the color of one pixel will change the colors of all pixels in that cell of bitmap memory.

Note that screen memory for our working example begins at address 23552.

Recall that this method can be used to create a picture with 320 by 200 pixel resolution. Another bitmap mode is available, however. This second mode allows four colors in each cell rather than two colors as demonstrated above. There is one catch: resolution is reduced to 160 by 200 pixels, and each pixel is twice as wide. The multicolor mode is enabled by turning on bit 4 of location 53270. Use this command to enable multicolor mode:

POKE 53270, PEEK(53270) OR 2 ↑ 4

Each pixel is now represented by two bits. These two bits have four possible combinations, resulting in four possible colors. To find the color each bit combination represents, several memory locations and/or areas are accessed: screen memory, color memory (this is always from 55296 to 55319), and the background color register at 53281. Color memory is arranged in the same order as screen memory. The following chart shows which bit combinations access which areas of memory:

Remember that three of the four colors selected can be different for each cell in the bitmap. The method used to draw the bitmap on the screen in two-color mode is used in the multicolor mode — only now, the bits are grouped together into pairs. The pairs are formed sequentially, so that bit 7 and bit 6 are paired, bit 5 and bit 4 are paired, and so on.

Protecting Your Picture

When using BASIC and the bitmap modes together, BASIC may have a tendency to use the bitmap memory for program and/or variable storage. To prevent this, change addresses 55 and 56, the bytes which point to BASIC'S end of memory. Simply change these to point to an address below the lowest address you use. Address 56 is equal to the last address used divided by 256, and address 55 is the remainder. After changing these two bytes, execute a CLR instruction. For example, this instruction insures that BASIC will not use any memory after address 23552:

POKE 55, 0:POKE 56, 92:CLR

To restore your 64 to normal operation, use the following commands:

POKE 53265,27:POKE 53270,200:POKE 53272,20: POKE 56576,151

00000000

00000001

00000010

00000011

00000100

00000111

00000001 = 1
00000010 = 2
00000100 = 4
00001000 = 8
00010000 = 16
00100000 = 32
01000000 = 64
10000000 = 128

10000000 (128)

11000000 (192)

11010000 (208)

11010001(209)

A Graphics Demonstration

If all the computations needed to find the right bit seem complicated to you, and the two-color mode would be satisfactory, use the following utility program. It is written in machine language to increase speed, and can be used through X and Y coordinates. It is accessed from BASIC via the SYS command.

The format of the SYS call is as follows:

SYS (base address of code), command, operand(s)

The commands for the utility are as follows:

• 0 = clear bitmap page (set all bytes to 0)
• 1 = set screen color. Set all bytes in screen memory to the operand. For example, SYS(BS), 1, 32 sets every byte in screen memory to 32.
• 2 = set point. Set a given point according to its X and Y coordinates. Note that the upper-left corner is (0, 0) and the bottom right is (319, 199). For example, SYS(BS), 2, 28, 122 sets point (28, 122).
• 3 = clear point. The format is the same as above.

This machine language utility is relocatable and can be loaded into memory anywhere simply by changing the pointer in the BASIC loader. Before the utility can be used, however, addresses 680 and 681 must be set. Set address 680 to the start address of the bitmap divided by 256. Likewise, set address 681 to the start address of screen memory divided by 256. If you have set up the bitmap as shown in our working examples, use these POKEs:

POKE 680, 96:POKE 681, 92

To see how the utility and various aspects of bitmapped graphics work, look at the following program, which draws a sine curve on the screen.

Bitmapped graphics are a powerful part of the 64's repertoire. Once mastered, the results can be spectacular. Remember, the best way to learn is by hands-on practice. Once you feel comfortable with the techniques we've covered, try some of these ideas:

1. Draw the picture into memory, then switch the pointers to it. This makes the graphics appear lightning fast, even from BASIC.
2. Use several bitmaps and switch the pointers between them. Again, this gives the appearance of lightning fast graphics.
3. Use sprites. Since the sprites are totally independent of the background, you can create some fantastic graphics for games.
