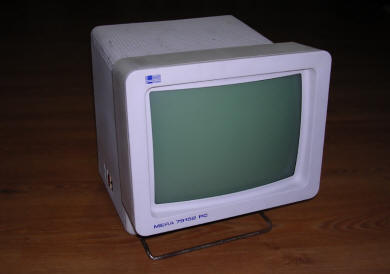

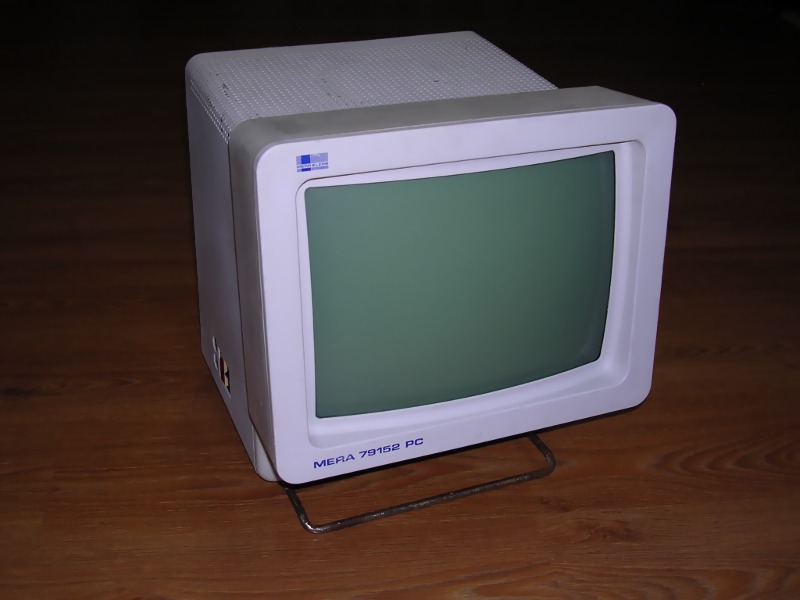

Mera 79152 PC
Another Mera-Elzab product, this time more modern one, made with some VLSI circuits. It was built around Eastern Block components and had capabilities of a typical "dumb terminal". Keyboard was made in Konsul Zbrojovka Brno.
| Manufacturer: | Mera-Elzab ZUK |
|
| Model | 79152 PC | |
| Year: | 198? | |
| CPU: | Z80 | |
| Memory: | 8K | |
| Display: | Monochrome green | |
| Keyboard: | Dedicated hallotron based, parallel link. | |
| Main port: | Serial (DB25) | |
| Additional ports: | Serial for printer (DB25) Keyboard (DB15) Video out (BNC)
|
|
 |
||
|
|
||
|
|
||
My unit is in a very poor condition. It doesn't work, as it has few logic chips broken. Because they are shorted, power supply got a damage too. CRT can't even try to start. Many chips have oxidized pins, because it was flooded in storage. ROMs are readable.
| These terminals were manufactured in Mera-Elzab.
Two Polish computer magazines from 1980s: Bajtek and IKS,

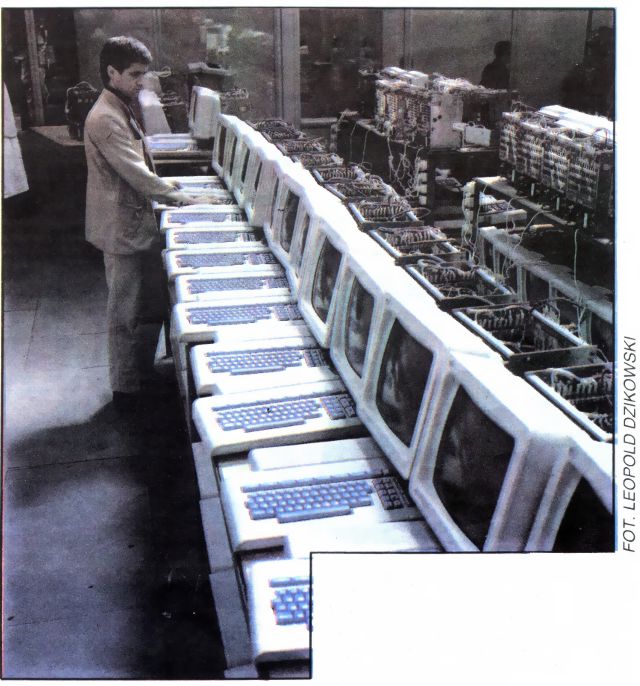

published its photos. In the first one (right) you can see that
extensive testing was performed with many units at once, with
comparable (to Transmit/Receive?) working unit separated on the
other table.
The other photo (lower-right), coming from an interview with Mera engineer about Meritum, shows us that there were green and amber screened one-board terminals. These units have probably the same mainboard as my unit. |
|
||
|
|
|

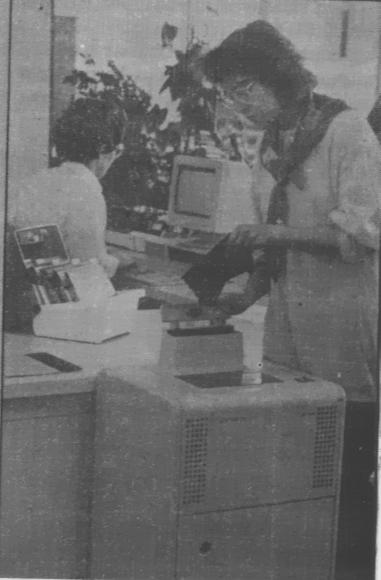

 Source: Komputer 1987. |
|

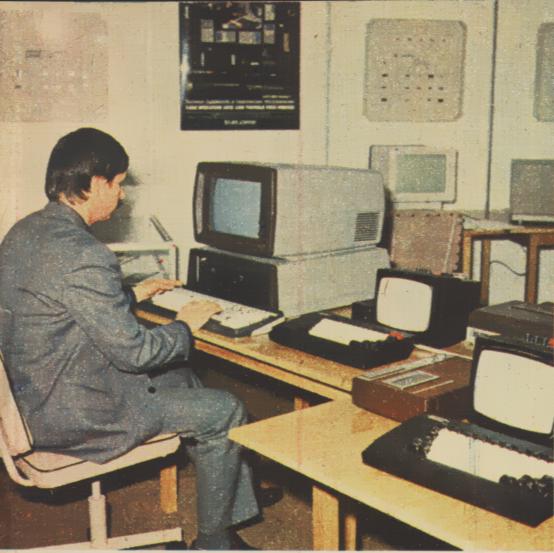

 Source: Komputer 1987 - using mainframe with Mera terminals. |
|||
